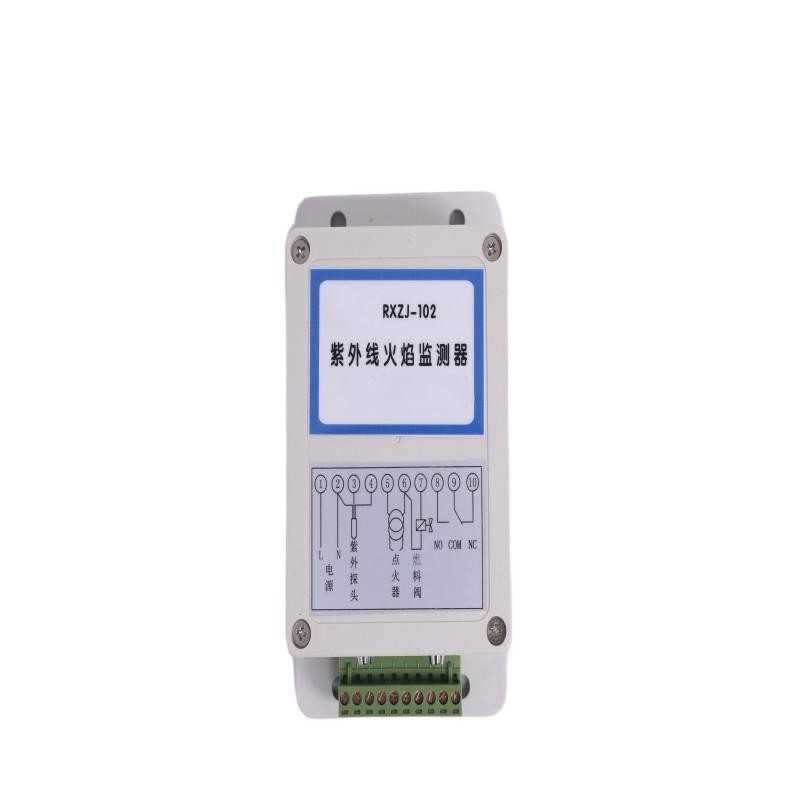

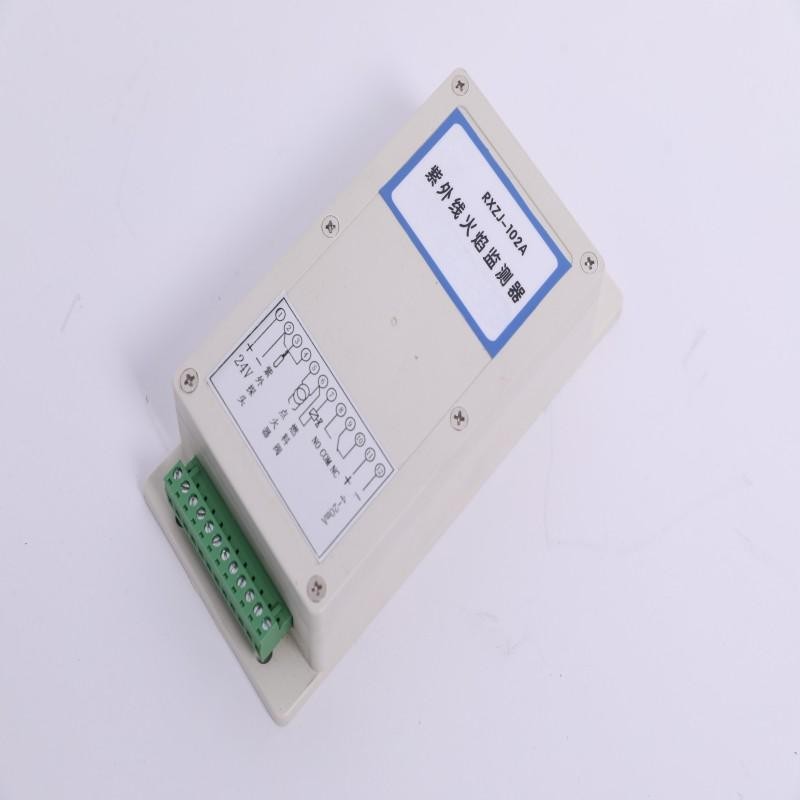

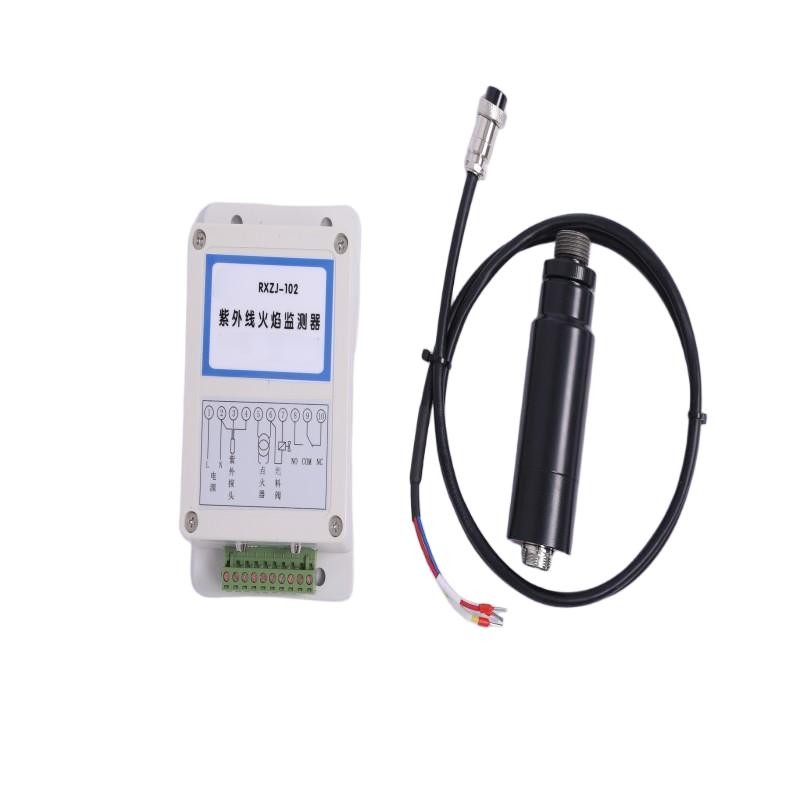

Ultraviolet Flame Monitor

Introduction：

The ultraviolet flame monitor is mainly used for flame monitoring of fuel gas and fuel oil industry burners, with he spectrum of combustion radiation  at  a  certain  frequency  when  the  fuel  is  burned.  The  UV  sensor  continuously  collects  and  analyses  the  combustion spectrum. The simulated flame signal is calculated and output by the intelligent frequency synthesis module. The flame  signal is automatically processed by the capacitor and follows the drift feedback module circuit to obtain a stable flame signal, so as  to realise the automatic matching of the distributed capacitor between the UV sensor and the monitor. The connection distance  between the sensor and the monitor can reach up to 200 metres without adjusting the capacitor matching potentiometer. At the  same time, the monitor also sets up a monitoring sensitivity adjustment potentiometer and a flameout delay valve regulating potentiometer, which is further convenient for users to use

Main technical parameters
