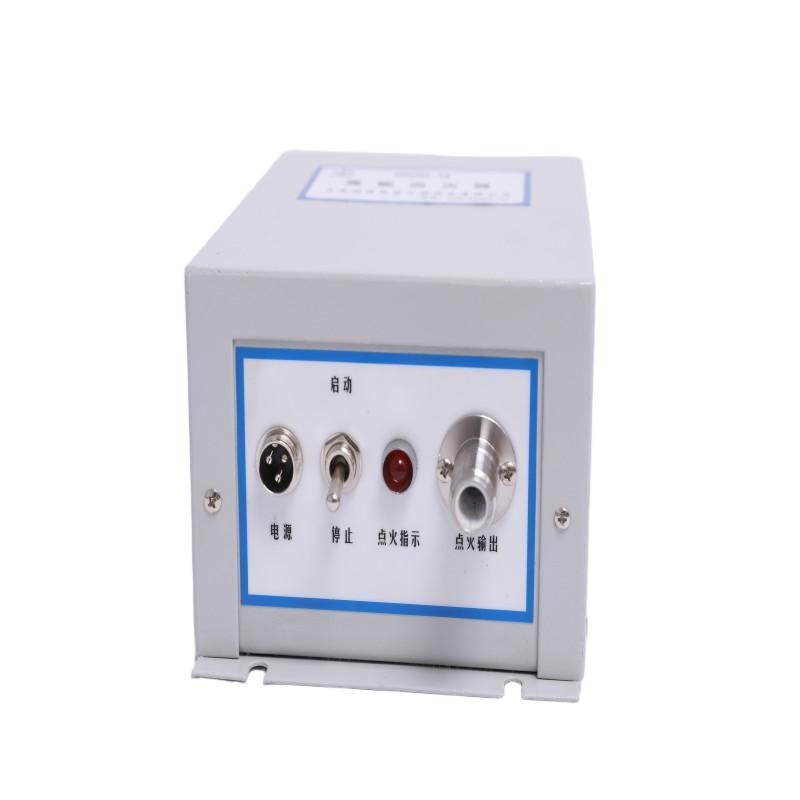

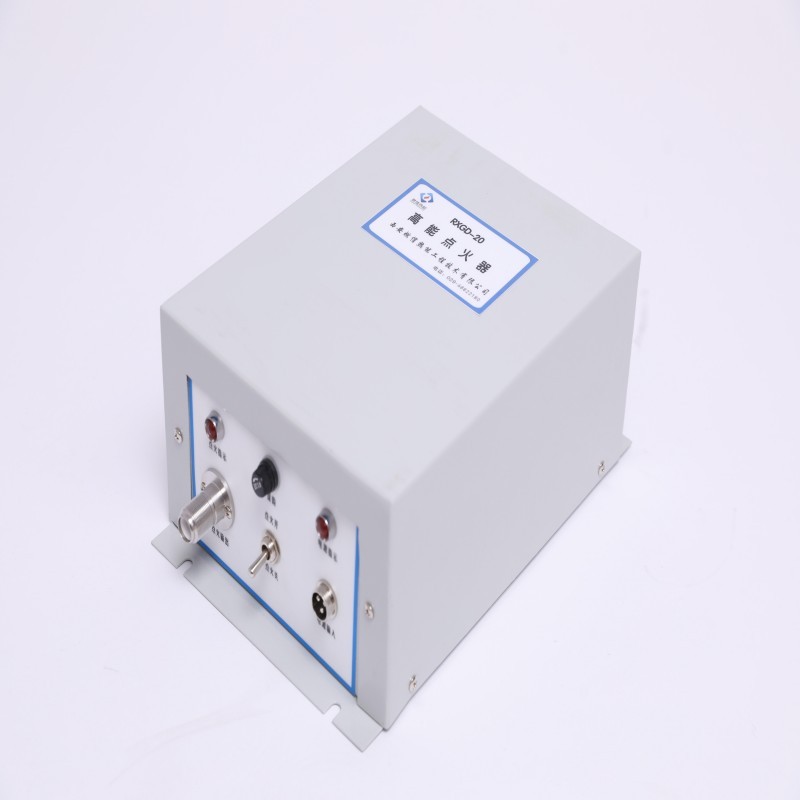

High-energy igniter
Product Overview
The high-energy igniter is applicable to power plant boilers, petrochemical plants, coal chemical industries, natural gas, iron and steel metallurgy, etc. It can be used for ignition of various industrial furnaces such as heating furnaces, hot blast stoves, gas furnaces, incinerators, and flare stacks.
Ignitable Media:
Natural gas, coke oven gas, converter gas, producer gas, and well-atomized diesel can all be reliably ignited.Working Principle
The input is AC power frequency of 220V, which is converted into DC pulsating current through step-up rectification to charge the energy storage capacitor. When the capacitor is fully charged, the discharge current is transmitted to the semiconductor spark plug of the ignition rod through the discharge tube, choke coil, high-voltage shielded
Maintechnicalparameters：
Model | RXGD-03 | RXGD-05 | RXGD-12 | RXGD-20 | RXGD-30 |
Operating voltage | 220V±10% 50/60HZ | 220V±10% 50/60HZ | 220V±10% 50/60HZ | 220V±10% 50/60HZ | 220V±10% 50/60HZ |
Ignition energy | 3J | 5J | 12J | 20J | 30J |
Ignition frequency | 6-15 /S | ||||
Applicable fuel | Fuel gas (such as acetylene) | Fuel gas (such as liquified gas) | Fuel gas (such as natural gas) light oil | Fuel gas , light oil, low heat value gas | Fuel gas , light oil, low heat value gas |
Boundary dimension | 145*130*90 | 240*125*75 | 220*175*110 | 280*195*110 | 400*230*120 |
Supporting ignition rod | Ignition rod material: stainless steel, ignition end material: 2520 alloy, temperature resistance 1300℃, non-standard customisation of length | ||||
Supporting ignition rod | According to the ignition model and working conditions, the length of the special cable for ignition is non-standard customised. | ||||
Connection method | Wiring/armored | Wiring/armored | Wiring/armored | Wiring/armored | Wiring/armored |
Installation and use：

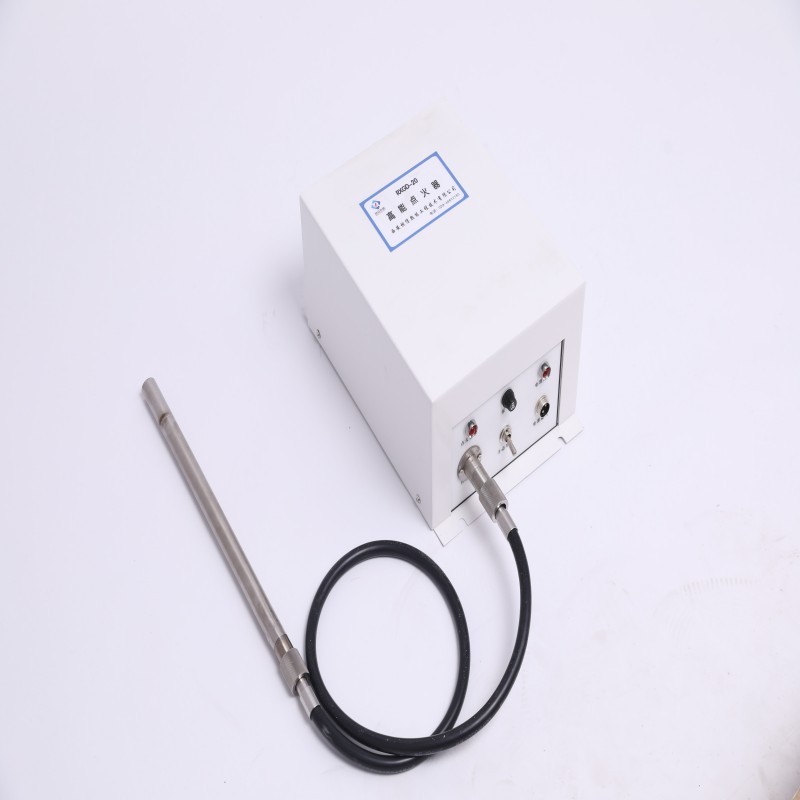

Connect the high-energy igniter and the ignition rod with a high-voltage ignition cable, and connect the high-energy
ignition power input terminal to the corresponding ignition switch circuit. After the power is sent to the high-energy ignition power supply, the device can work, so that the ignition rod nozzle is discharged and ignited.
Note: Please consult the relevant technicians of our company for the relevant parameters, selection and process requirements of the gas burner.
