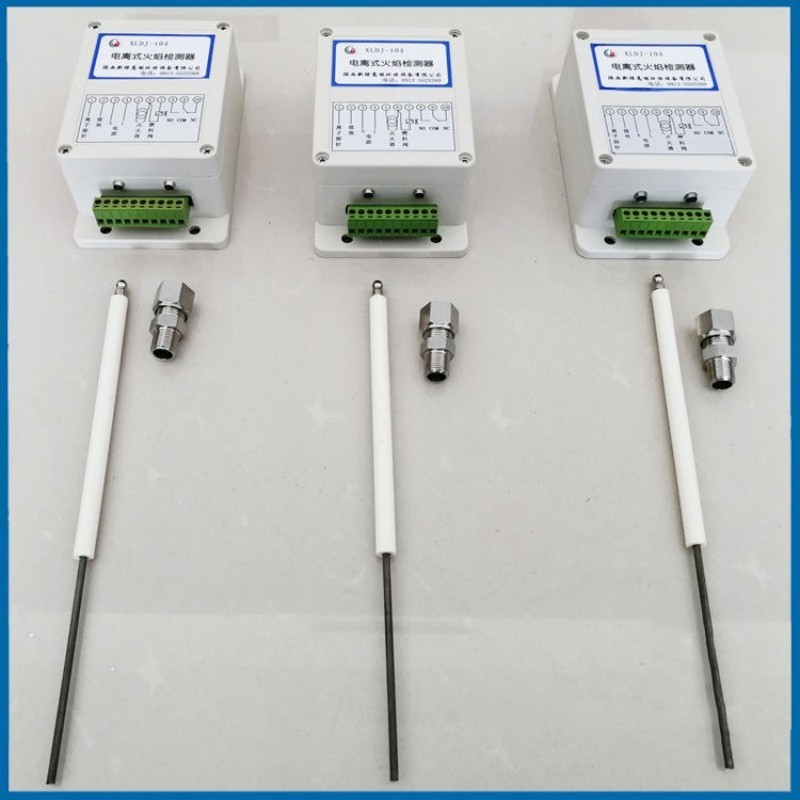

Ionization flame monitor

Product Overview

The ionization flame detector is mainly used for flame detection of burners. It has good and reliable detection performance. It is only sensitive to flames and has no response to temperature. It has strong

Main technical indicators：

1.  Power supply voltage     220 V     ±10%50/60Hz

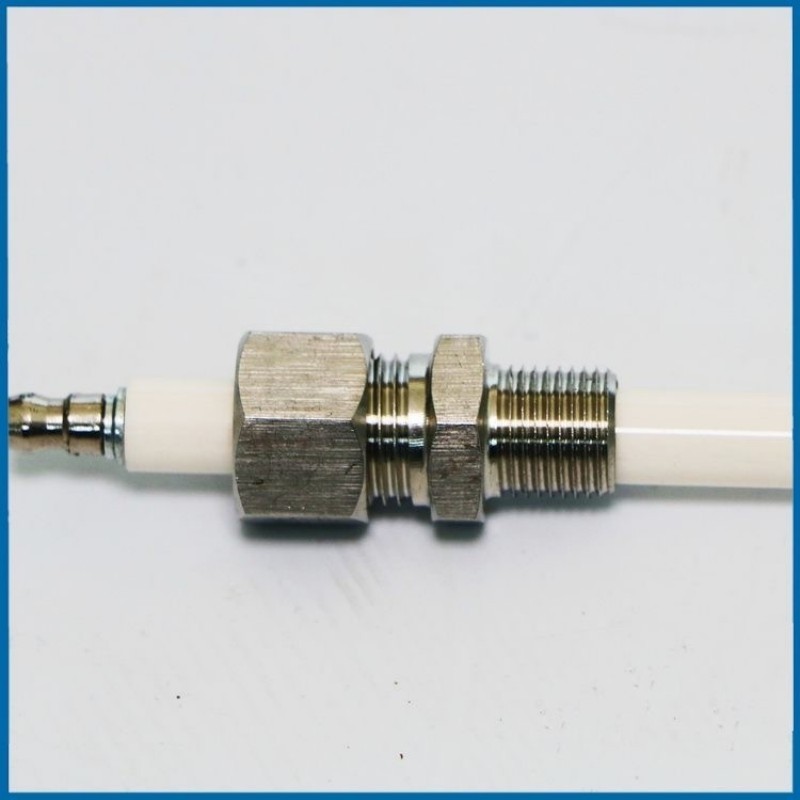

2. Flame monitoring: ionised electrode

3.  Monitoring response time    ≤     0.2 seconds

4.  The connection distance between the ionisation needle and   the detector is ≤ 100 metres

ⅡInstallation：

Electrode  monitoring :  The  monitor  detects  the  flame  by    contact  detection  method.  When  installing  the  electrode ,  the    centre   electrode   must   be    able   to   contact   the    flame   when    monitoring .  The  centre  electrode  of  the  monitoring   electrode    must  be  insulated  to  the  ground  without  contacting  the  metal    material or refractory material in the burner . The ground line of    the control device must be firmly connected (grounded) to the
