Explosion-proof high-energy igniter
Product Overview
The explosion-proof high-energy ignitor is suitable for power plant boilers, petrochemical plants, coal chemical industries, natural gas, iron and steel metallurgy and other industries where explosion-proof requirements are needed. It can be applied to the ignition of various industrial furnaces such as heating furnaces, hot blast stoves, gas furnaces, incinerators and flare stacks.
Ignitable Media:
Natural gas, coke oven gas, converter gas, producer gas, well-atomized diesel can all be reliably ignited.
Product Composition

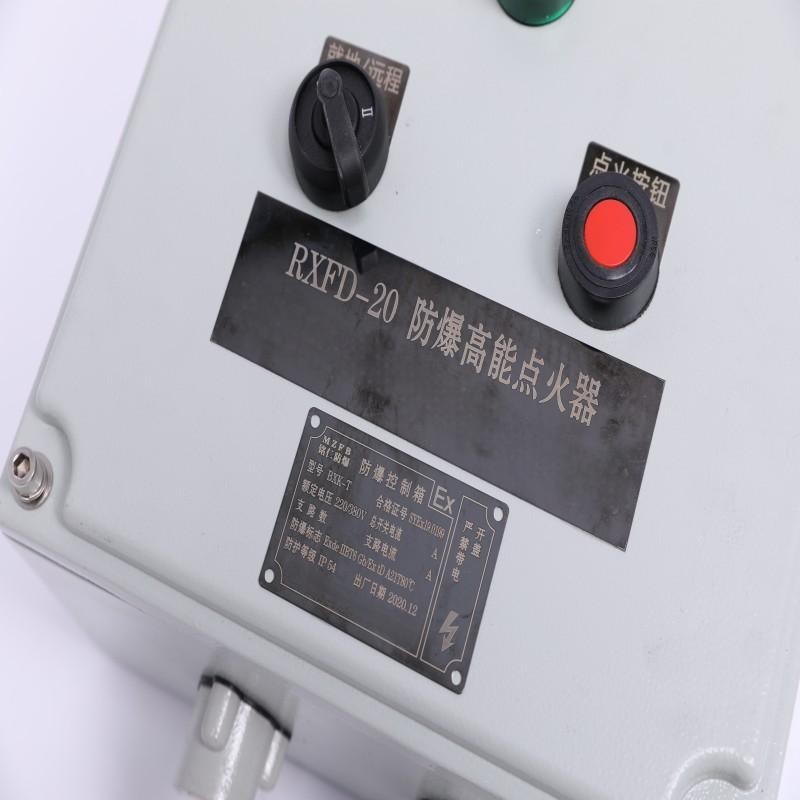

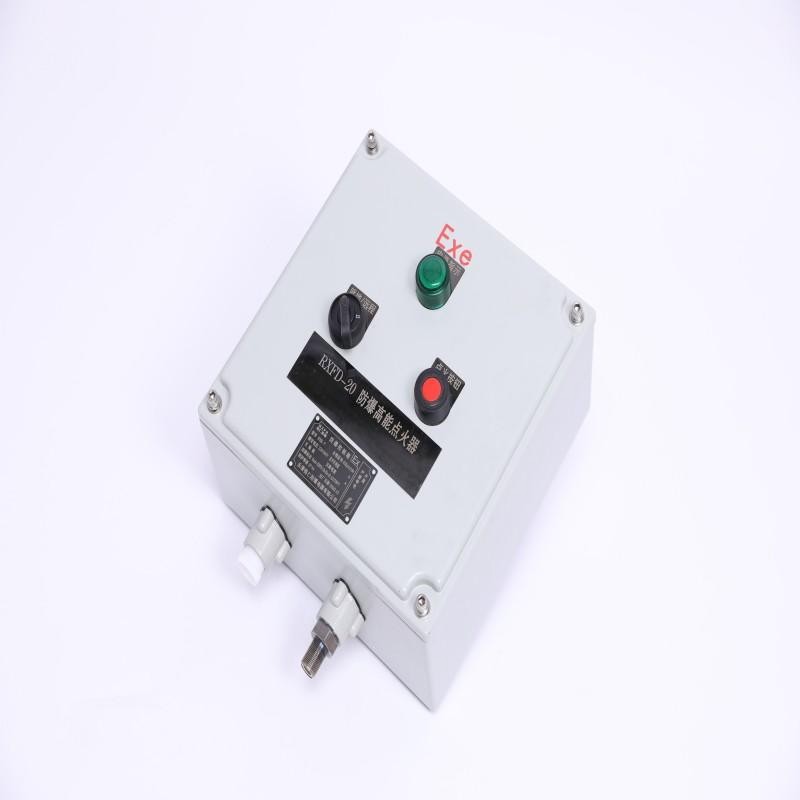

The high-energy ignitor is mainly composed of three parts: explosion-proof ignition box, ignition rod and ignition cable.
Technical Parameters (DC24V can be customized)
RXFD-03 | RXFD-05 | RXFD-12 | RXFD-20 | RXFD-30 | |
Operating voltage | 220V±10%50/60HZ | 220V±10%50/60HZ | 220V±10% 50/60HZ | 220V±10% 50/60HZ | 220V±10% 50/60HZ |
Ignition energy | 3J | 5J | 12J | 20J | 30J |
Ignition frequency | 6-15/S | ||||
Explosion- proof grade | Exd IBT4or Exd IICT4 | ||||
Applicable fuel | Fuel gas (Such as acetylene) | Fuel gas (Such as liquified gas) | Fuel gas (Such as natural gas) light oil | Fuel gas, light oil, low heat value gas | Fuel gas, light oil, low heat value gas |
Boundary dimension | 300*200*150 | 300*300*150 | |||
Supporting ignition rod | Ignition rod material: stainless steel, ignition end material: 2520 alloy, temperature resistance 1300℃, non-standard customisation of length | ||||
Supporting cable | According to the ignition model and working conditions, the length of the special cable for ignition is non-standard customised. | ||||
